The molds adopt the double flow channel structure and nitriding polishing processed die head. This makes the adjustment of partial wall convenient and fast and ensures the thickness of the inner and outer wall uniform and stable.

The latest design of closed pressure water cooling structure, full cooling, multi-point distribution vacuum system, higher efficiency, faster production speed.

Online double wall belling function and automatic lubrication system.

The advanced shuttle structure and reasonable track design make the module run more smoothly and the forming section longer, which is conducive to rapid production. lower energy consumption and cost saving.

It's simple and fast to replace the mold, saving time and cost.

Online EPS uninterruptible power supply ensures the automatic return of the forming worktable in case of sudden power failure, so that the mould block can be separated from the water sleeve in time.

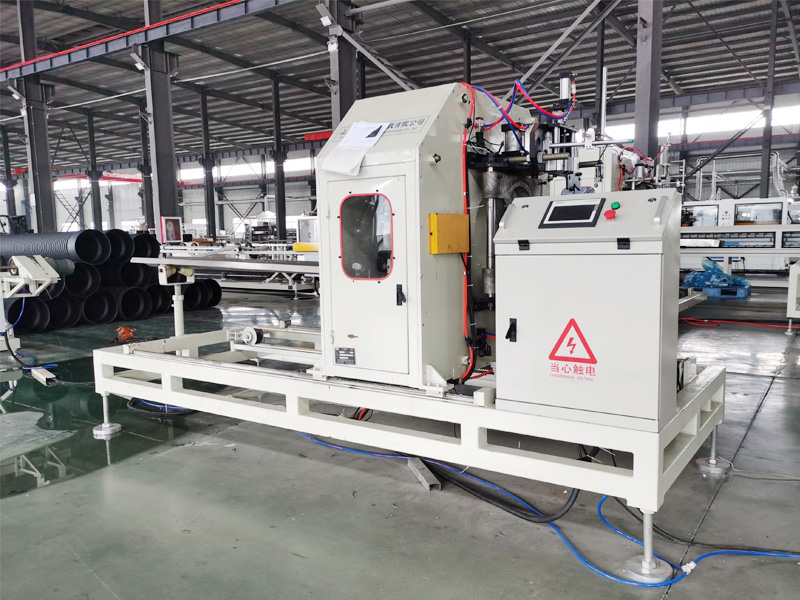

Siemens professional PLC programming control cutting machine, double knife cutting, simple and sensitive operation,accurate, stable and reliable.

Human machine interface, extrusion synchronous control system, with remote communication function and realize remote fault diagnosis and troubleshooting

Production line series is divided into ID32-ID63,ID75-ID200,ID110-ID300, ID200-ID600,ID500-ID800,ID800-ID1200,ID1200-1D2000(mm).

Advantage：

-Bimetal alloy screw barrel,wear-resisting and corrosion-resistant,improve service life.

-Reasonable runner design,realizing low pressure and low temperature extrusion,high efficiency and energy saving.

-High-efficiency vacuum system makes the pipe forming more perfect.

-The airtight water-cooled structure makes the pipe forming faster.

-The airtight cooling water circuit adopts fixed connection,no need to disassemble the interface to replace the module,and prevent water leakage.

-Card slot module installation makes module replacement convenient and quick,and shortens the time between reproduction.

-The perfect optimization of the running track makes the module run more smoothly.

-Double hydraulic and double cutter head make the cutting more accurate and faster.

-High-speed and efficient production reduces the cost of the same unit pipe by 30%.

Technical Parameter：
